F9
If you have customized demand, we strongly recommend our products. Please contact our sales consultant for more detailed product information. Get Support

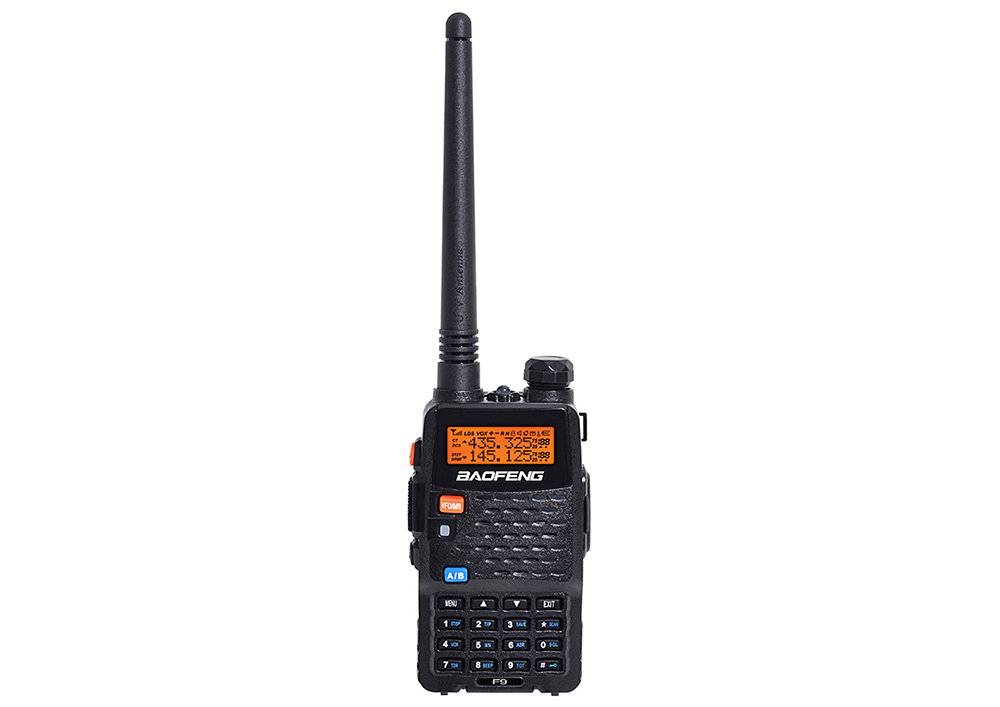

BaoFeng Radio F9 / Characteristic function
Intelligent design
Dot matrix LCD screen with Chinese and English voice prompts, friendly interface, more convenient to control and select the function
Double Shou Shuanghou
Double, double significant, dual frequency waiting, U / V segment relay cross-section transceiver, user-friendly network at any time
Large capacity channel storage
Up to 128 memory channels are available for programming frequency and various other data
Rich signaling
Each channel can set different CTCSS / DCS, DTMF signaling, reject redundant calls from other stations
The tail is eliminated
Tail to eliminate, to avoid the end of the call after the impact of noise emitted by the speaker, to avoid the user by the impact of noise
VOX voice transmission
Voice-activated transmission function (VOX), allowing users to liberate their hands, without pressing the PTT button to normal call
Pilot and scrambling functions
Equipped with the use of the cluster network transmission pilot, scrambling function, to adapt to a variety of complex conditions set requirements
Full manual operation
Menu item keyboard digital direct election function, the transmission and reception frequency can be input directly
High / low power switch
Users can set the channel power through the computer programming software for high power or low power, or manually switch the high and low functions, according to the actual use of the environment and distance requirements, select a reasonable power, effectively save power.
BaoFeng Radio F9 / Conventional parameter

General specification

frequency range U/V: 400-520MHz/136-174MHz
channel capacity 128
Channel spacing 25.0kHz / 12.5kHz
Frequency stability ±1.5ppm
working temperature -20℃ ~ +60℃
Antenna impedance 50Ω
working voltage 3.7V
Dimensions (L * w * h) 110×57×37mm
Weight (with battery and antenna) 212g
Battery 1800mAh (Lithium ion battery)


Acceptance specification

Receiving sensitivity 0.15μV / 0.18μV
Adjacent channel selectivity 65dB / 55dB
Intermodulation Rejection 55dB
Spurious Response ≥60dB
Signal to noise ratio 40dB / 35dB
Rated audio output power ≥600mW
Rated audio distortion ≤5%


Launch specifications

Transmitting power ≤5W
modulation mode 16KΦF3E / 8KΦF3E
Modulation limit ≤5kHz / ±2.5kHz
FM distortion ≤5%
residual FM -45dB / -35dB
Adjacent channel power -65dB / -55dB
Stray and harmonic ≤-36dBm
BaoFeng Radio F9 / Accessories list
Standard

antenna   Lithium ion battery   The power adapter   USB intelligent charger   Belt clip


Matching
Headset    Hand microphone    Programming line
